Machines for specimen and surface grinding, flywheels and discs, punch and knife sharpening, and automatic tool grinding.

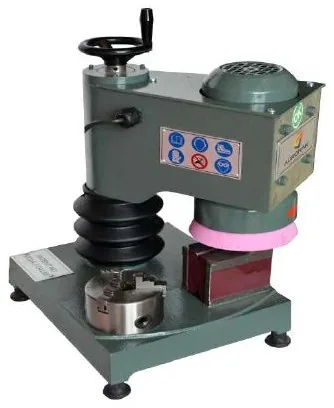

Specimen grinding machine
What it is for: Precise grinding of specimens with minimal surface deformation, for material testing and analysis; wheels for different materials.
| Machine dimensions | 40 × 30 × 60 cm |
|---|---|
| Weight | 42 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 50 mm |
| Motor | 0.25 kW 2800 rpm |
| Chuck diameter | 100 mm |
| Magnetic chuck | 100 × 60 manual |
Source: AUROMAK catalogue, p. 15.

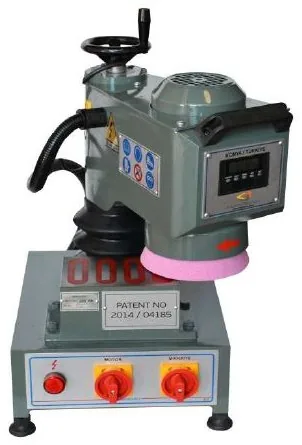

Surface grinding machine
What it is for: High-precision surface grinding with automatic workpiece holding and feed; emergency stop.
| Machine dimensions | 45 × 35 × 75 cm |
|---|---|
| Weight | 47 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 50 mm |
| Motor | 0.25 kW 2800 rpm |
| Digital readout | 100 mm |
| Magnetic chuck | 100 W |
Source: AUROMAK catalogue, p. 15.
Punch tool grinding machine
What it is for: Sharpening of punches and dies; process display and safety interlocks.
| Machine dimensions | 80 × 50 × 65 cm |
|---|---|
| Weight | 110 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 230 mm |
| Grinding wheel motor | 1.1 kW 2800 rpm |
| Motor | 0.09 kW |
| Chuck diameter | 200 mm |
| Magnetic chuck | 100 W |
| Tank capacity | 15 L |
Source: AUROMAK catalogue, p. 16.

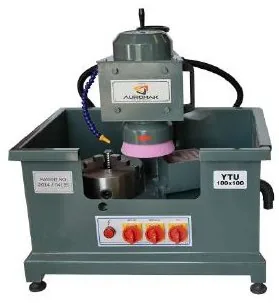

Wet grinding machine
What it is for: Grinding with water cooling and lubrication: less heat distortion, longer tool life, better surface finish.
| Machine dimensions | 90 × 35 × 80 cm |
|---|---|
| Weight | 65 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 50 mm |
| Grinding wheel motor | 0.25 kW 2800 rpm |
| Motor | 0.09 kW |
| Digital readout | 0.01 mm |
| Magnetic chuck | 150 × 100 mm |
| Tank capacity | 15 L |
Source: AUROMAK catalogue, p. 16.

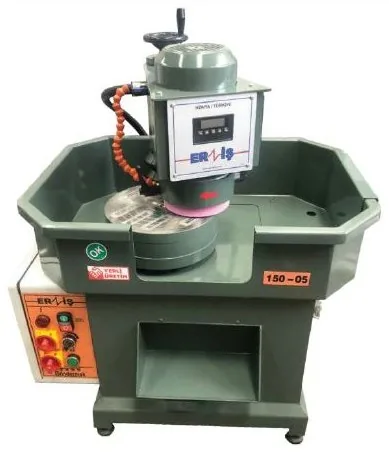

Bowl grinding machine
What it is for: Grinding on a rotary table with adjustable speed, 0.01 mm digital readout. Model designation as printed in the manufacturer's catalogue.
| Machine dimensions | 75 × 55 × 85 cm |
|---|---|
| Weight | 140 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 50 mm |
| Grinding wheel motor | 0.75 kW 2800 rpm |
| Motor | 0.09 kW |
| Magnetic chuck | 250 mm |
| Tank capacity | 20 L |
| Digital readout | 0.01 mm |
| Table motor | 0.18 kW 1400 rpm |
| Rotation speed (adjustable) | 0-100 |
Source: AUROMAK catalogue, p. 17.
Flywheel and disc grinding machine
What it is for: Grinds the faces of flywheels and discs of 250–500 mm diameter on a rotary plate. Model designation as printed in the manufacturer's catalogue.
| Machine dimensions | 90 × 75 × 80 cm |
|---|---|
| Weight | 160 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 50 mm; custom sizes possible |
| Grinding wheel motor | 1.1 kW 2800 rpm |
| Motor | 0.09 kW |
| Plate diameter | 250-500 mm |
| Tank capacity | 20 L |
| Digital readout | 0.01 mm |
| Table motor | 0.37 kW 1400 rpm |
| Rotation speed (adjustable) | 0-100 |
Source: AUROMAK catalogue, p. 17.
Crusher knife sharpening machine
What it is for: Sharpens plastic crusher knives: grinding head on a guide with 850 mm table travel. Wheel distance can be customised.
| Machine dimensions | 125 × 140 × 92 cm |
|---|---|
| Weight | 260 kg |
| Table stroke | 850 mm |
| Max plate-to-wheel distance | 185 mm (custom sizes possible) |
| Grinding wheel motor | 1.1 kW 2800 rpm |
| Magnetic chuck | 450 W 300-500 mm |
| Z-feed indicator | 0.02 mm |
| Table motor | 0.37 kW 1400 rpm |
| Rotation speed (adjustable) | 0-17 |
Source: AUROMAK catalogue, p. 18.

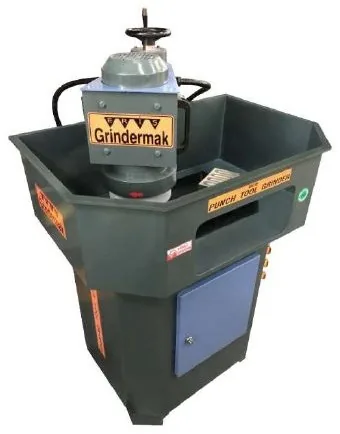

Flywheel and disc grinding machine
What it is for: Grinding of flywheels and discs; 200 mm chuck, 30 L coolant tank. Model designation as printed in the manufacturer's catalogue.
| Machine dimensions | 65 × 90 × 80 cm |
|---|---|
| Weight | 180 kg |
| Table stroke | 50 mm |
| Max plate-to-wheel distance | 230 mm |
| Grinding wheel motor | 2.2 kW 2800 rpm |
| Motor | 0.09 kW |
| Chuck diameter | 200 mm |
| Magnetic chuck | 100 W |
| Tank capacity | 30 L |
Source: AUROMAK catalogue, p. 18.
Automatic punch tool grinding machine
What it is for: Automatic sharpening of punches and dies: the tool is clamped in the chuck, the operator picks it from the tool library on the touchscreen and sets the stock removal; sensors measure the tool height. Model designation as printed in the manufacturer's catalogue.
| Table surface | A-B-C-D line grinding |
|---|---|
| Table stroke | 180 mm |
| Max plate-to-wheel distance | 230 mm |
| Z feed | 0.01-0.20 mm |
| Max wheel size | 150 mm |
| Wheel speed | 3400 rpm |
| Wheel motor | 1.1 kW-3000 rpm |
| Z-feed motor | 400 W-400 rpm |
| Coolant pump motor | 0.09 kW 3000 rpm |
| Table motor | 0.09 kW 1400 rpm with gearbox |
| Electrical system | 380-24 V DC |
| Machine length | 500 mm |
| Machine width | 500 mm |
| Machine height | 1020 mm |
| Fixtures | A-B-C-D grinding fixture, 1° angle grinding tool |
| Coolant tank | 30 L |
| Machine weight | 220 kg |
Source: AUROMAK catalogue, p. 19.
Surface grinding machine, hydraulic
What it is for: Surface grinding of large parts: 1200 × 700 mm table, 1300 mm table stroke, adjustable wheel and table speed.
| Table surface | 1200 × 700 mm |
|---|---|
| Table stroke | 1300 mm |
| Max plate-to-wheel distance | 630 mm |
| Wheel travel (Y) | 650 mm |
| Wheel feed adjustment | 0.01-20 mm |
| Z feed | 0.01-0.10 mm |
| Max wheel size | 300 × 76.5 × 30 mm |
| Wheel speed (adjustable) | 0-2000 rpm |
| Table speed (adjustable, max) | 0-20 rpm |
| Wheel motor | 5.5 kW-1400 rpm |
| Hydraulic motor | 4 kW-1400 rpm |
| Z-feed motor | 0.37 kW-1400 rpm |
| Y-axis motor | 0.18 kW-1400 rpm |
| Electrical system | 380-24 V |
| Machine length | 2300 mm |
| Machine width | 2550 mm |
| Machine height | 2300 mm |
| Working length | 4200 mm |
| Balancing shaft | 1 pcs |
| Balancing table | 1 pcs |
| Wheel flange | 1 pcs |
| Hydraulic tank | 90 L |
| Coolant tank | 150 L |
| Machine weight | 4500 kg |
Source: AUROMAK catalogue, p. 19.
Other groups
Can't find the right model? Describe your parts and we will pick one from the AUROMAK range.
