Wet blasting machine without compressor

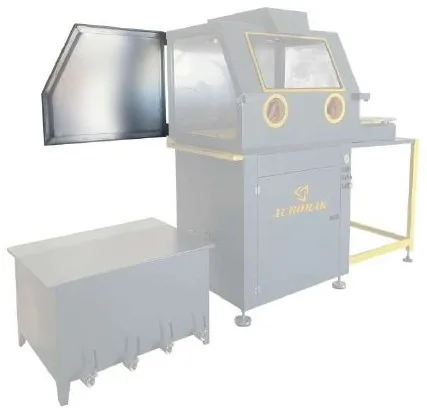

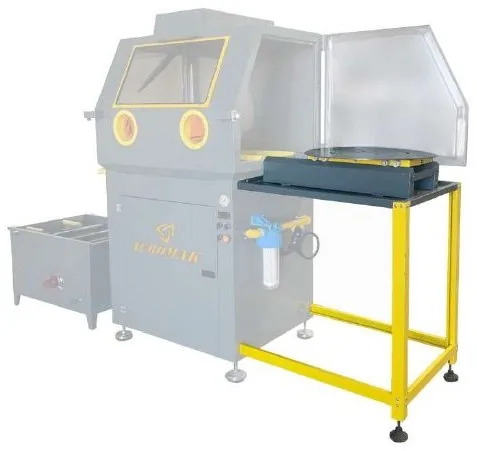

AUROMAK SKM-S1000
What it is for: A built-in high-pressure pump draws the water and abrasive mix from the tank and sprays it through a boron-carbide nozzle, so no compressed air is needed. Compared with dry blasting it leaves a smoother surface with minimal wear; suited to parts of complex shape. An external filter cleans the water and abrasive for reuse. A loading table with a turntable makes heavy parts easy to handle.
Specifications
| Working area | 960 × 790 × 580 mm with turntable; 960 × 790 × 500 mm without |
|---|---|
| Turntable diameter | 600 mm |
| Loading height with turntable | 500 mm |
| Loading height without turntable | 580 mm |
| Load capacity | 100 kg |
| Loading trolley | optional |
| Lid control | manual |
| Tank capacity | 100 L |
| Stainless filter volume | 180 L |
| Filter liquid level control | standard |
| Body material | stainless steel AISI 430, powder-coated |
| Pressure pump | 200 bar, 15 L (as printed); 7.5 hp induction motor |
| Heating power | 7.5 kW |
| Machine dimensions | 1680 × 1500 × 1800 mm |
| Machine weight | 220 kg |
| Crated dimensions | 1250 × 1000 × 2000 mm |
| Crated weight | 310 kg |
Source: AUROMAK catalogue, p. 5.
Options: loading trolley; left-hand lid so the table works in both directions; rotary work table.
- Price
- Price on request
- Manufacturer
- AUROMAK (Konya, Türkiye)
