Engine workshop equipment

Diesel particulate filter (DPF) cleaning, cylinder-head pressure testing, valve grinding.

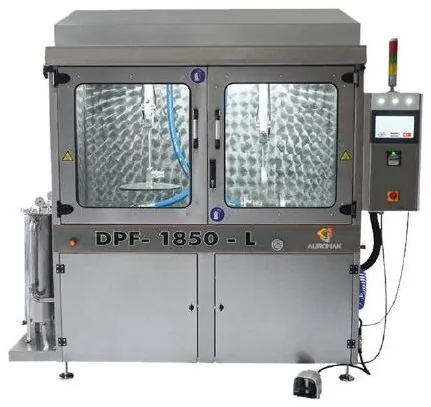

DPF cleaning machine AUROMAK DPF-1850-L
AUROMAK DPF-1850-L, another viewAUROMAK DPF-1850-L, another view
Photo from the AUROMAK catalogue

DPF cleaning machine

AUROMAK DPF-1850-L

What it is for: Cleans diesel particulate filters from cars and commercial vehicles. One-button cycle: clogging test with a report, washing, a second test, drying. Two independent chambers: wash and dry two filters at once.

Specifications
Specifications DPF-1850-L
Load capacity250 kg
Tank capacity250 L
Voltage / phases380-400-3Ph - T - N
Touch screen7"
Safety barrieroptional
Work toolingoptional
LightingIP 67
Compressed-air demand100/6 L, bar (as printed)
Drying systemstandard
Machine weight750 kg
Body materialstainless steel AISI 304 / AISI 430
Machine dimensions1100 × 2500 × 2150 mm

Source: AUROMAK catalogue, p. 10.

Price
Price on request
Manufacturer
AUROMAK (Konya, Türkiye)
Request a quotation

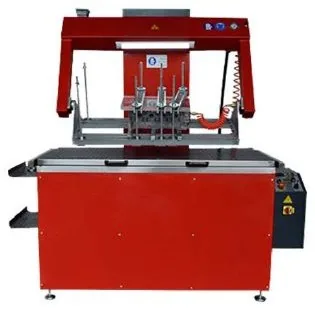

Cylinder-head pressure tester AUROMAK KT-1600

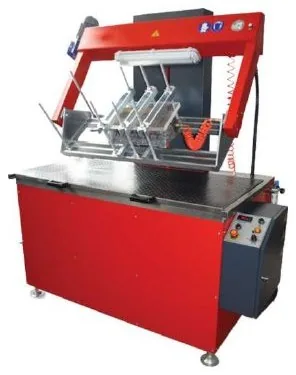

AUROMAK KT-1600, another viewAUROMAK KT-1600, another view
Photo from the AUROMAK catalogue

Cylinder-head pressure tester

AUROMAK KT-1600

What it is for: Pressure and leak testing of cylinder heads. Quick clamping, a hydraulic lift for heavy heads, an insulated stainless tank, several test modes and a fault alarm.

Specifications
Specifications KT-1600
Machine dimensions2000 × 1050 × 1600 mm
Max cylinder-head length1100 mm
Max cylinder-head width360 mm
Max cylinder-head height400 mm
Weight250 kg
Tank capacity500 L
Heating power2 × 10 kW
Thermostat0-90°C
Voltage / phases220-380 V/3

Source: AUROMAK catalogue, p. 11.

Price
Price on request
Manufacturer
AUROMAK (Konya, Türkiye)
Request a quotation

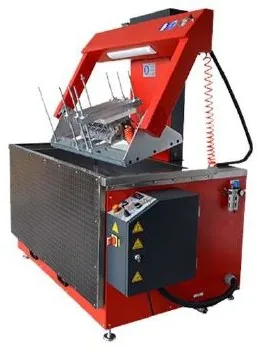

Cylinder-head pressure tester AUROMAK KT-1800
AUROMAK KT-1800, another view
Photo from the AUROMAK catalogue

Cylinder-head pressure tester

AUROMAK KT-1800

What it is for: Same design as the KT-1600, for heads up to 1300 mm long.

Specifications
Specifications KT-1800
Machine dimensions2000 × 1100 × 1800 mm
Max cylinder-head length1300 mm
Max cylinder-head width420 mm
Max cylinder-head height450 mm
Weight250 kg
Tank capacity700 L
Heating power2 × 10 kW
Thermostat0-90°C
Voltage / phases220-380 V/3

Source: AUROMAK catalogue, p. 11.

Price
Price on request
Manufacturer
AUROMAK (Konya, Türkiye)
Request a quotation
AUROMAK Valve grinding machine
AUROMAK Valve grinding machine, another view
Photo from the AUROMAK catalogue

Valve grinding machine

AUROMAK Valve grinding machine

What it is for: Grinds valve faces and stem ends. The valve is held in a “double V” system instead of a collet or lathe chuck; fits valves from many engine types. Control panel on the cabinet.

Specifications
Specifications Valve grinding machine
Max valve head diameter90 mm
Max valve stem diameter16 mm
Max valve length330 mm
Grinding wheel size, mm175 × 35
Speed2800 rpm
Power0.36 kW
Grinding wheel travel70 mm
Height1410 mm
Length570 mm
Width480 mm
Weight (approx.)90 kg

Source: AUROMAK catalogue, p. 14.

Price
Price on request
Manufacturer
AUROMAK (Konya, Türkiye)
Request a quotation
