Automatic washers

Rotary basket parts washer

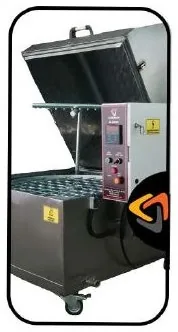

AUROMAK PYM-M 700

What it is for: Automatic washing of parts in a rotating basket: detergent is sprayed at pressure from nozzles at different angles and removes oil, chips and dirt. The water is filtered and reused.

Specifications

Specifications PYM-M 700

Basket diameter	600 mm
Loading height	300 mm
Load capacity	75 kg
Loading trolley	no
Lid control	manual
Tank capacity	60 L
Body material	stainless steel AISI 430
High-pressure pump	1 hp 3 bar 12 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	4.5 kW
Machine dimensions	750 × 1000 × 950 mm
Machine weight	100 kg
Crated dimensions	850 × 1100 × 1100
Crated weight	130 kg

Source: AUROMAK catalogue, p. 7.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Rotary basket parts washer

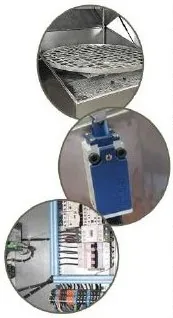

AUROMAK PYM-M 1000

What it is for: Automatic washing of parts in a rotating basket: detergent is sprayed at pressure from nozzles at different angles and removes oil, chips and dirt. The water is filtered and reused.

Specifications

Specifications PYM-M 1000

Basket width	900 mm
Loading height	450 mm
Load capacity	250 kg
Loading trolley	no
Lid control	manual
Tank capacity	80 L
Body material	stainless steel AISI 430
High-pressure pump	1.5 hp 3 bar 24 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	7.5 kW
Machine dimensions	1050 × 1300 × 1100 mm
Machine weight	180 kg
Crated dimensions	1150 × 1400 × 1250 mm
Crated weight	250 kg

Source: AUROMAK catalogue, p. 7.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Rotary basket parts washer

AUROMAK PYM-M 1250

What it is for: Automatic washing of parts in a rotating basket: detergent is sprayed at pressure from nozzles at different angles and removes oil, chips and dirt. The water is filtered and reused. A loading trolley is standard.

Specifications

Specifications PYM-M 1250

Basket width	1150 mm
Loading height	550 mm
Load capacity	400 kg
Loading trolley	standard
Lid control	manual
Tank capacity	180 L
Body material	stainless steel AISI 430
High-pressure pump	1.5 hp 3 bar 24 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	2 × 7.5 kW
Machine dimensions	1300 × 1550 × 1300 mm
Machine weight	240 kg
Crated dimensions	1400 × 1700 × 1450 mm
Crated weight	320 kg

Source: AUROMAK catalogue, p. 8.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Rotary basket parts washer

AUROMAK PYM-M 1500

What it is for: Automatic washing of parts in a rotating basket: detergent is sprayed at pressure from nozzles at different angles and removes oil, chips and dirt. The water is filtered and reused. A loading trolley is standard.

Specifications

Specifications PYM-M 1500

Basket width	1350 mm
Loading height	700 mm
Load capacity	600 kg
Loading trolley	standard
Lid control	manual
Tank capacity	300 L
Body material	stainless steel AISI 430
High-pressure pump	2 × 1.5 hp 3 bar 24 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	2 × 7.5 kW
Machine dimensions	1680 × 1500 × 1800 mm
Machine weight	350 kg
Crated dimensions	1830 × 1600 × 2000 mm
Crated weight	500 kg

Source: AUROMAK catalogue, p. 8.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Rotary basket washer, pneumatic lid

AUROMAK PYM-P 1500

What it is for: Rotary basket washer whose lid is raised by pneumatic cylinders. A thermostat keeps the temperature; two heaters in the tank. With detergent, the tank water lasts 2–3 days.

Specifications

Specifications PYM-P 1500

Basket diameter	1350 mm
Loading height	700 mm
Load capacity	600 kg
Loading trolley	standard
Lid control	pneumatic
Tank capacity	300 L
Body material	stainless steel AISI 430
High-pressure pump	2 × 1.5 hp 3 bar 24 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	2 × 7.5 kW
Machine dimensions	1680 × 1500 × 1800 mm
Machine weight	350 kg
Crated dimensions	1830 × 1600 × 2000 mm
Crated weight	500 kg

Source: AUROMAK catalogue, p. 9.

Options: water level switch: stops the machine when the water is low, protecting heaters and pumps.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Rotary basket washer, pneumatic lid

AUROMAK PYM-P 1750

What it is for: Rotary basket washer whose lid is raised by pneumatic cylinders. A thermostat keeps the temperature; two heaters in the tank. With detergent, the tank water lasts 2–3 days.

Specifications

Specifications PYM-P 1750

Basket diameter	1600 mm
Loading height	700 mm
Load capacity	800 kg
Loading trolley	standard
Lid control	pneumatic
Tank capacity	350 L
Body material	stainless steel AISI 430
High-pressure pump	2 × 1.5 hp 3 bar 24 t/h
Basket, pipes, nozzles, rotating parts	galvanised carbon steel
Heating power	2 × 7.5 kW
Height with lid open	2700 mm
Machine dimensions	2050 × 1750 × 1800 mm
Machine weight	475 kg
Crated dimensions	2150 × 1850 × 2000 mm
Crated weight	600 kg

Source: AUROMAK catalogue, p. 9.

Options: water level switch: stops the machine when the water is low, protecting heaters and pumps.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Conveyor belt tunnel washer

AUROMAK Conveyor tunnel washer

What it is for: Hot-water pressure washing, rinsing, drying and lubrication of parts in line: parts travel through the tunnel on a conveyor belt. For series production.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Drum washer

AUROMAK Drum system washer

What it is for: For small parts that cannot go in a basket: screws, nuts, fittings, CNC-machined parts. Removes burrs and oil, for example before coating. Built to suit the part size and volume.

Specifications

Specifications Drum system washer

Machine dimensions	2800 mm
Drum diameter	400 mm
Capacity	250 kg
Tank capacity	250 L
Temperature	0-90°C
Supply voltage	380 V/3
Body material	stainless steel
Tank material	stainless steel
Pump material	stainless steel
Heating power	22.5 kW
Filtration	2 stages
Tank insulation	standard
Drum speed	adjustable
Emergency stop	standard

Source: AUROMAK catalogue, p. 13.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)

Roller washing machine

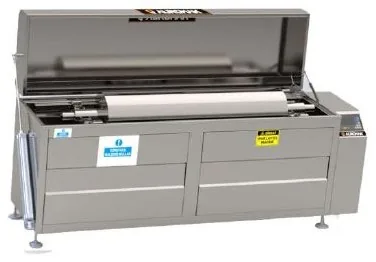

AUROMAK Anilox roller washing machine

What it is for: Cleans rollers with brushes and pressurised liquid. Suitable for solvents; built with ATEX-certified explosion-proof components. Single or multiple rollers, sizes to order.

Specifications

Specifications Anilox roller washing machine

Max working size	300 × 1900 mm
Min working size	100 × 700 mm
Operating pressure	140 bar
Supply voltage	380 V
Construction materials	stainless steel AISI 304, chrome, polyamide

Source: AUROMAK catalogue, p. 13.

Price

Price on request

Manufacturer

AUROMAK (Konya, Türkiye)
